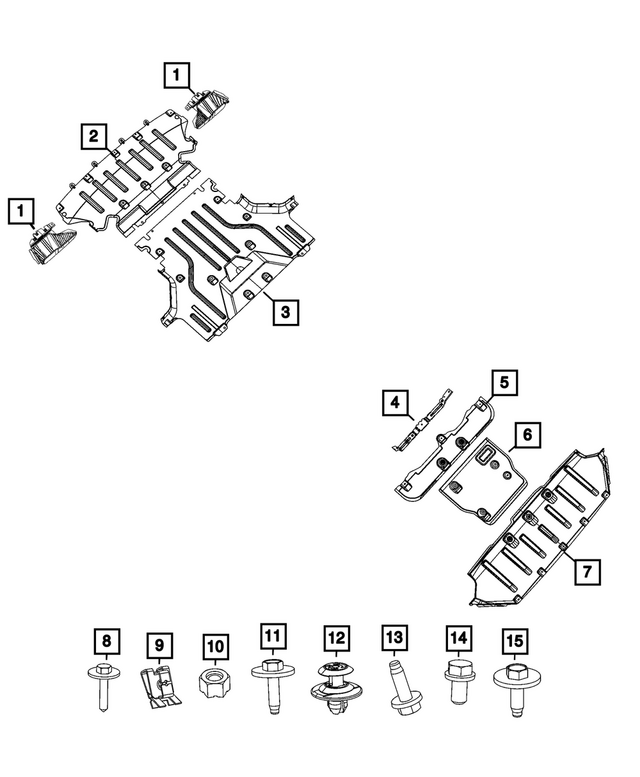

Under Body Protection for 2024 Dodge Charger
No.
Part # / Description / Price
Price
3
Floor Pan Shield, Right
Mopar
Mopar Description: Up To 08/25/2025. With Spring Nuts. Front. After 8/25/25.
4
Shield Bracket Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Rear Mid Difusser.
5
MSRP $122.00 CAD
$80.70 CAD
7
MSRP $282.00 CAD
$185.63 CAD
8
Hex Flange Head Tapping Screw Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
MSRP $4.95 CAD
$3.59 CAD
MSRP $4.95 CAD
$3.59 CAD
10
Hex Nut, Right Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Door Module Attaching. Fender to Body. Fender Reinforcement Aperture Upper to Fender. Battery Bracket to BIW Attach. Rear Bracket Attaching. Fender mtg brkt lwr to sill. Fender Attach to Front Bracket. Fender Bracket Lower to Sill. Ball Stud Bracket to Body. Fender Reinforcement Front Lower to Fender.
11
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
MSRP $15.20 CAD
$11.02 CAD
MSRP $15.20 CAD
$11.02 CAD
12
Push Pin Mopar
Mopar Description: Close Out Attaching. Engine Shield To Cradle Plate. Cover To Bracket Electronic Module. Belly Pan To Cradle. Mid Shield Attaching. M10.25x14.6.
MSRP $4.95 CAD
$3.59 CAD
MSRP $4.95 CAD
$3.59 CAD
13
Cap Head Screw And Washer Mopar
Mopar Description: M8x1.25x28. Shear Plate to Body. Bracket Mid Diffuser to Rear Cradle.
MSRP $4.40 CAD
$3.18 CAD
MSRP $4.40 CAD
$3.18 CAD
14
Screw Mopar
Mopar Description: M12x1.75x25.00. Aero Shield To EDM. Transmission Harness to ECM. Edm cover to edm. Engine ground to block.
15
MSRP $4.85 CAD
$3.51 CAD
