High Voltage Battery Pack for 2024 Jeep Wagoneer S

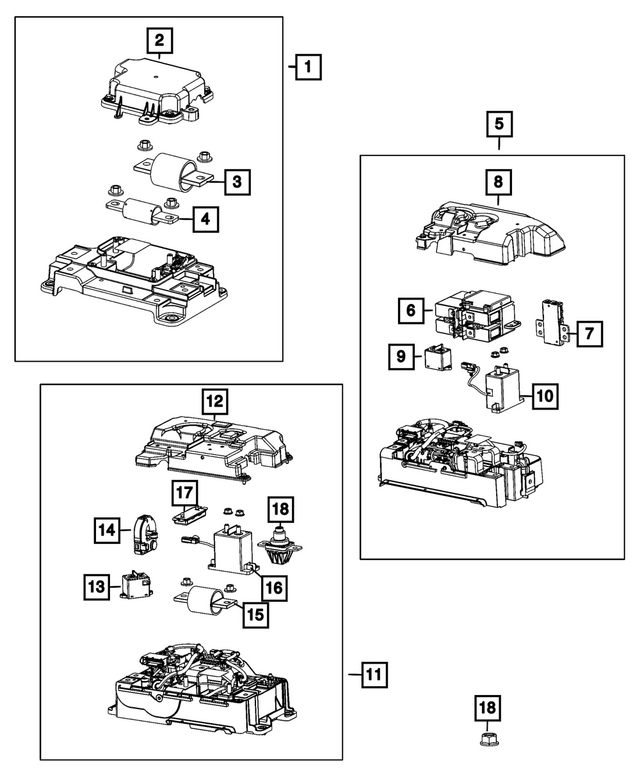

Diagram 1 1. High Voltage Busbar Diagram 2 2. 6 Lobe External Head Bolt Diagram 3 3. Module Bracket Diagram 4 4. High Voltage Battery Disconnect Unit Diagram 5 5. Deflector Shield Diagram 6 6. Busbar Insulator Diagram 7 7. Battery Pack Battery Diagram 8 8. Electrical Connector Diagram 9 9. Battery Particulate Filter
No.
Part # / Description / Price
Price
1
5193226AC - High Voltage Powertrain Systems: High Voltage Battery Disconnect Unit for Mopar Image
High Voltage Battery Disconnect Unit
05193226AC
Mopar Mopar
MSRP $351.00 CAD
$231.66 CAD
MSRP $351.00 CAD
$231.66 CAD
2
5193227AB - High Voltage Powertrain Systems: Battery Cover for Mopar Image
Battery Cover
05193227AB
Mopar Mopar
View Details
View Details
3
5193478AA - High Voltage Powertrain Systems: Battery Thermal Fuse for Mopar Image
Battery Thermal Fuse
05193478AA
Mopar Mopar
MSRP $255.00 CAD
$167.81 CAD
MSRP $255.00 CAD
$167.81 CAD
4
5193482AA - High Voltage Powertrain Systems: Fuse for Mopar Image
Fuse
05193482AA
Mopar Mopar
MSRP $180.00 CAD
$119.44 CAD
MSRP $180.00 CAD
$119.44 CAD
5
5193224AB - High Voltage Powertrain Systems: High Voltage Battery Disconnect Unit for Mopar Image
High Voltage Battery Disconnect Unit
05193224AB
Mopar Mopar
MSRP $1,470.00 CAD
$959.42 CAD
MSRP $1,470.00 CAD
$959.42 CAD
6
5193210AA - High Voltage Powertrain Systems: High Voltage Relay for Mopar Image
High Voltage Relay
05193210AA
Mopar Mopar
View Details
View Details
7
5193220AB - High Voltage Powertrain Systems: Battery Sensor for Mopar Image
Battery Sensor
05193220AB
Mopar Mopar
MSRP $327.00 CAD
$215.33 CAD
MSRP $327.00 CAD
$215.33 CAD
8
5193225AB - High Voltage Powertrain Systems: Battery Cover for Mopar Image
Battery Cover
05193225AB
Mopar Mopar
View Details
View Details
9
5193358AA - High Voltage Powertrain Systems: High Voltage Relay for Mopar Image
High Voltage Relay
05193358AA
Mopar Mopar
View Details
View Details
10
5193481AA - High Voltage Powertrain Systems: Relay for Mopar Image
Relay
05193481AA
Mopar Mopar
View Details
View Details
11
5193222AB - High Voltage Powertrain Systems: High Voltage Battery Disconnect Unit for Mopar Image
High Voltage Battery Disconnect Unit
05193222AB
Mopar Mopar
MSRP $1,060.00 CAD
$690.13 CAD
MSRP $1,060.00 CAD
$690.13 CAD
12
5193223AB - High Voltage Powertrain Systems: Battery Disconnect Cover for Mopar Image
Battery Disconnect Cover
05193223AB
Mopar Mopar
MSRP $51.75 CAD
$35.71 CAD
View Details
MSRP $51.75 CAD
$35.71 CAD
View Details
14
5193465AA - High Voltage Powertrain Systems: High Voltage Battery Sensor for Mopar Image
High Voltage Battery Sensor
05193465AA
Mopar Mopar
View Details
View Details
16
5193479AA - High Voltage Powertrain Systems: Relay for Mopar Image
Relay
05193479AA
Mopar Mopar
View Details
View Details
17
5193480AA - High Voltage Powertrain Systems: Pre Charge Resistor for Mopar Image
Pre Charge Resistor
05193480AA
Mopar Mopar
View Details
View Details
18
6506539AA - High Voltage Powertrain Systems: Hex Flange Nut for Mopar Image
Hex Flange Nut, Mounting, Front
06506539AA
Mopar Mopar
Description: Channel Lower. M6x1.00. Lines to Hvac. After 01-09-2002. Included in Sliding Door Glass. Glass to Regulator attaching. Glass Assy. to Window Regulator. Glass atttach to regulator.
MSRP $6.55 CAD
$4.74 CAD
MSRP $6.55 CAD
$4.74 CAD
